Automated Robotic Palletizer Machine Intelligent Bag Handling System

Name: Automated Robotic Palletizer Machine Intelligent Bag Handling System
Brand: VPEKS
Price: 13 USD

China Automated Robotic Palletizer Machine Intelligent Bag Handling System wholesale

Brand Name : VPEKS

Place of Origin : Henan, China

Price : $13,000.00/sets >=1 sets

Supply Ability : 200 Set/Sets per Month

Packaging Details : plywood case for vertical palletizing

Model Number : IRB660 ABB Robot Arm

Certification : CE, UL, ETL, MD, RoHS

MOQ : 1 set

Payment Terms : T/T, L/L, D/P, D/A

Delivery Time : 20 working days

Type : Robotic Palletizer Machine

Production Capacity : 5bag/min, 20bag/min, 7bag/min, 6bag/min, 40bag/min, 9bag/min, 25bag/min, 8bag/min, 15bag/min, 10bag/min, 50bag/min, 30bag/min, 35bag/min

Applicable Industries : Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops

Weight (KG) : 1400

Showroom Location : Canada, United Kingdom, United States, Italy, France, Germany

Condition : New

Function : palletizing

Application : Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco

Packaging Type : Cartons, Bottles, Stand-up Pouch, Bags, Film, Foil, Pouch, case

Packaging Material : Plastic

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 380V 50/60HZ

Dimension(L*W*H) : 2750*950*3250

Warranty : 2 years

Key Selling Points : Long Service Life

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Other

Machine type : Vertical Automatic palletizing Machine

e Automated palletizer : Automatic palletizer

Palletizing system : Pallet stacking machin

model name : Robotic palletizer

Port : Qingdao, shanghai

palletizing tools : columbia palletizer

automated palletizer : automatic palletizer machine

Contact Now

Product Description:

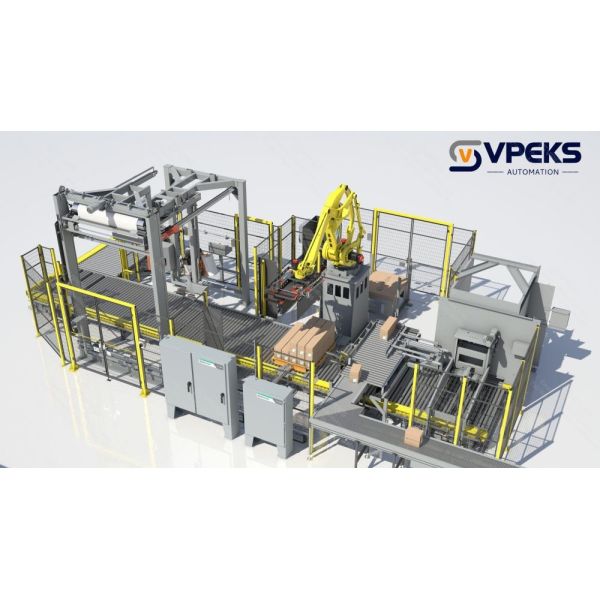

Automated Bag Stacking Systems Robotic Palletizer Machine Intelligent Bag Handling Systems

Automating the palletizing of bags using a robotic bag palletizer can provide one of the fastest returns on investment! These systems use a palletizing robot arm to automatically stack bags, boxes, buckets, and more on pallets for shipping or storage. They can operate 24/7, effectively eliminating the need for a team of operators at the end of a packaging line stacking heavy bags on pallets. They are space saving solutions that can be oriented in any direction to accept bag inflow from a new or existing bagging system. One of the advantages of using a robotic bag palletizer is that it can handle different types of bags, such as paper, poly, woven, or valve bags. A auto stacker machine can also be integrated with the palletizer to automatically stack the pallets on top of each other, saving more space and time. For products that are packaged in boxes, an automatic box palletizer can be used to create stable and uniform pallet loads. Some of the leading companies that provide these kinds of manufacturing automation solutions are Automation LLC and Automation Ltd.

Technical Parameters:

IRB660 ABB Robot Arm
Variants 1: IRB 660-180	Variants 2:IRB 660-250
Maximum Load of Robot: 180 kg	Maximum Load of Robot: 250 kg
Maximum Reach: 3.15m	Maximum Reach: 3.15m
Repeatability: 0.1 mm	Repeatability: 0.1 mm
Path repeatability: 0.3 mm	Path repeatability: 0.3 mm
Controller: IRC5 Single cabinet, Dual cabinet	Controller: IRC5 Single cabinet, Dual cabinet
Application	PALLETISING, Handling of parts
Robot Motion Speed
Axis 1: 130°/s	Axis 1: 95°/s
Axis 2: 130°/s	Axis 2: 95°/s
Axis 3: 130°/s	Axis 3: 95°/s
Axis 6: 300°/s	Axis 6: 240°/s
Axis working range
Axis 1: +180° to -180° Option +220° to -220°	Axis 1: +180° to -180° Option +220° to -220°
Axis 2: +85° to -42°	Axis 2: +85° to -42°
Axis 3: +120° to -20°	Axis 3: +120° to -20°
Axis 6: +300° to -300° Default +150 rev. to –150 rev. Max	Axis 6: +300° to -300° Default +150 rev. to –150 rev. Max

Features:

Robotic bag palletizer: Automates the palletizing of bags using a palletizing robot arm, which can handle different types of bags and stack them on pallets for shipping or storage.
Auto stacker machine: Integrates with the robotic bag palletizer to automatically stack the pallets on top of each other, saving more space and time.
Automatic box palletizer: Automates the palletizing of boxes, which can be of different sizes and shapes, and creates stable and uniform pallet loads.
Manufacturing automation solutions: Provided by leading companies such as Automation LLC and Automation Ltd, which offer customized and cost-effective solutions for various industries, such as the bottle water packaging industry.

FAQ:

Q: How to choose a proper automatic palletizing machine?
Please tell us the pallet size, and target output( bags/hour). We will recommend the most suitable model to you.

Q: How do I test the machine before shipping?
Once the machine is finished, we will run over 72 hours and send test videos to you. Of course, you can come in person or hire a third-party organization to inspect our factory.

Q: How long does it usually take to receive the equipment?
The production time of different machines ranges from 10 days to 30 working days. As for shipping issues, there are different shipping ways for options. For most countries, we could help clients to do Door to Door shipping service. Air shipping is fast but expensive, it’s a good choice for urgent orders, it only takes 7-10 days max. Sea shipping is the most economical shipping way, depending on different destination seaports, the shipping times range from 15 to 45 days.

Q: How will my machines be installed if necessary? How long does the installation take?
We’ll dispatch an engineer to your facility, help to install the machine and train your staff on how to operate it. The customer pays for round-trip airfare, accommodation, and USD150/day/person. Depending on the machines you ordered, it will take about 7 to 30 days.

Q: Do you have certificates?
We have been certified by reputable certification bodies.

Q: What’s the main difference in machines between VPEKS Automation and other manufacturers?
(1)The basic manufacturing principle of VPEKS is to use international brand components as much as possible. Almost 95% to 100% of components of them are made by OMRON>, SIEMENS>, ABB>, Schnieder>, AirTAC>, NSK>, etc. In this case, our foreign clients will not worry about the lifespan and replacement issues in the future. (2)In product design and program design, we adhere to the principles of simplicity and ease of use. After all, the purpose of automation is to save labor costs not to create operation costs.

Q: How to choose a proper packing machine?
If you need packing machines for small bags, firstly please confirm your bag type. Secondly, according to your product’s characteristics choose a dosing system(screw type, pump type, etc). Thirdly, according to bag size choose the machine model. If you need a packing machine for big bags(5kg to 50kg), just tell us your target output per hour and the name of your raw materials.

Q: Do you have any references?
We have customer success cases in most countries. Suppose we get permission from a customer who imports a machine from us.

Q: What is the packing speed of the machine?
The actual speed may be influenced by factors as follows: Material: viscosity, density, volume, weight, etc. Machine: the speed of the dosing system (piston for liquid, combination scale for granules, and augur filler for powder)

Q: What are your terms of payment?
Payment<=5000 USD, 100% in advance. Payment>=5000 USD, 30% T/T in advance, balance before shipment.

Q: What’s the guarantee of the machine?
We have 1 1-year guarantee for all the machines. If any components are broken during 1 year, we will send replacements to clients for free by express. And we will take videos to teach you how to replace it. Also, we have several service centers in different countries. We offer lifetime technical support. Since we adopt international components, clients can easily source spare parts from local after 1 year.

Q: What’s the main difference in service between VPEKS and other manufacturers?
(1)Vpeks’ salesmen are not only sellers but also seasoned engineers. They could help you a lot by providing the best solution and proper machines.

(2)Vpeks provide integrated solutions for clients. Besides providing high-quality machinery, in-time online after-sale service, and on-site installation service, we could help clients choose suitable package raw materials, calculate site area, input-output ratio, electricity, air supply, etc.
