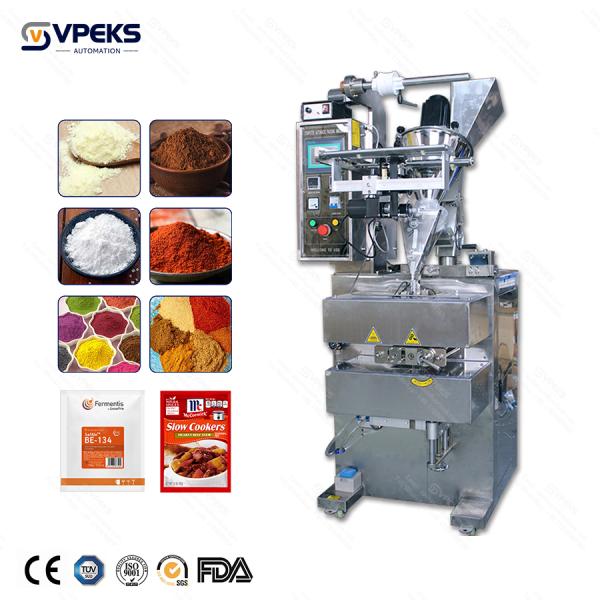

VPEKS Automatic Powder Packing Machine 5g 10g 20g 50g VFFS Vertical Small Bag Filling Machine

Name: VPEKS Automatic Powder Packing Machine 5g 10g 20g 50g VFFS Vertical Small Bag Filling Machine
Brand: VPEKS
Price: 500.00 USD

China VPEKS Automatic Powder Packing Machine 5g 10g 20g 50g VFFS Vertical Small Bag Filling Machine wholesale

Type : Multi-Function Packaging Machine

Production Capacity : 24-60bag/min

Applicable Industries : Garment Shops, Food & Beverage Factory, Farms, Restaurant, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops

Weight (KG) : 280

Showroom Location : United States, Spain, UAE, Romania, Malaysia, Australia

Function : FILLING, Labeling, Sealing, counting, Bag forming

Application : Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Tobacco

Packaging Type : Stand-up Pouch, Bags, Film, Pouch

Packaging Material : Plastic, Paper

Automatic Grade : Automatic

Driven Type : Pneumatic

Voltage : 220V,50/60Hz

Place of Origin : Henan, China

Brand Name : VPEKS

Dimension(L*W*H) : (L)650*(W)1050*(H)*1750mm

Warranty : 1 Year

Key Selling Points : Easy to Operate

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC, Gear, Bearing

Model : VPSF-4D

Packing Speed : 24 to 60bags per min

Bag Style : 3 sides seal, 4 sides seal, back seal

Packaging Details : plywood case

Port : Qingdao, shanghai

Supply Ability : 200 Set/Sets per Month

Price : $500.00/sets >=1 sets

Contact Now

Product Overview

VPSF-4D powder packing machine, back seal/3 sides sealing packing machine

VPEKS VFFS packing machine with screw feeder is good for filling and packing powder type raw materials into bags. The packing range of the bags could be 0.5-3ml, 3-10ml or 10-60ml. By changing the bag former on the small bag packing machine, we can pack powder into different size bags. The width of bag could be 25mm to 145mm and the length of bag could be 30mm to 150mm. The final bag could be back seal, 3 sides seal or 4 sides seal

FEATURES AT A GLANCE

Widely used for different kinds of powder raw materials

International brand Frequency changer

High-end RV Series reducer

Simple Operation interface

In time and long term technical support

VPEKS Automatic Powder Packing Machine 5g 10g 20g 50g VFFS Vertical Small Bag Filling Machine

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

Model	VPSF-4D powder 4 sides sealing packing machine
Bag style	4 sides seal
Packing speed	24-60bags/min
Bag Length	30-150mm
Bag Width	25-145mm(Need to replace bag former)
Filling range	0.5-3ml、3-10ml、10-60ml
Power	2.2kw
Weight	280kg
Dimension	65010501750mm
Packing size	11007501820mm

PRODUCT CONFIGURATION

Speed-adjustable Motor

Precision transmission system

Bag forming and cutting system

VPEKS Automatic Powder Packing Machine 5g 10g 20g 50g VFFS Vertical Small Bag Filling Machine Images
